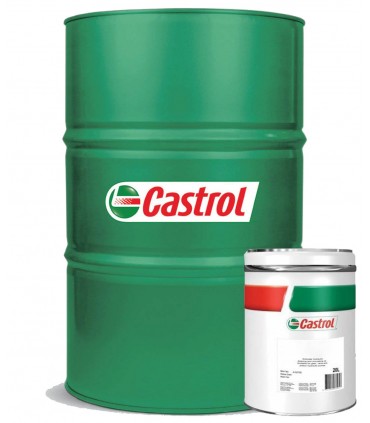

CASTROL ANVOL SWX 68 FM

Description

Castrol Anvol™ SWX 46 FM and SWX 68 FM are HFDU Polyol ester type hydraulic fluids as defined by ISO 6734/4 and ISO 12922 (1). They are fully approved by FM Global (Factory Mutual) as industrial Fire Resistant Hydraulic Fluids.

The Anvol SWX FM range is outstanding in their category in providing a safe working environment, improved system reliability and biodegradability.

Application

Formulated to work in high-pressure hydraulic systems up to 7500 psi. Anvol SWX FM provides gear, vane and piston pumps with protection against wear equivalent to that of mineral oils.

Anvol SWX FM is designed to combine fire resistance with superior system reliability and a reduced tendency to form varnish or sludge in valves, pipes and reservoirs. It also provides greater resistance to water by offering high levels of corrosion protection. Even in the harshest steel mill environment, Anvol SWX provides safety, protection and reliability. This has the added value of reducing failures and minimising unscheduled downtime.

Anvol SWX FM is used in areas of the manufacturing industry where there is high risk of fire such as hot strip mills, coil handling facilities, pipe mills and continuous casters. The risk is minimized by Anvol SWX FM’s high fire point and a low heat of combustion.

Anvol SWX FM fluids are compatible with Acrylonitrile-butadiene rubbers (NBR), hydrogenated NBR and fluorocarbon rubbers (FKM). The Seal Compatibility Index (IP278) for Anvol SWX FM is comparable to mineral oils.

Anvol SWX FM is classified as follows:

ISO 6743/4 – Hydraulic Oils Type HFDU Anvol SWX FM grades meet the requirements (for appropriate viscosity grade) of:

Oilgear Towler Bosch Rexroth

FM Global 6930 Approved (FM Standard 6930 Jan 2002 Category 1)

Advantages

 High fire point: provides superior fire resistance characteristics, creating a safer working environment and greater equipment protection

 • Shear stable: maintains viscosity and fire resistant properties during use

 •Advanced corrosion inhibition: protects ferrous components from residual water and leads to extended equipment life and reduced downtime

• Excellent resistance to oxidation and thermal degradation: reduces sludge and varnish and prevents valve sticking – ensuring longer system life and longer drain periods

 •Superior anti-wear performance: passes 12+ FZG stages and delivers excellent wear protection therefore reduces downtime from unscheduled maintenance

• Inherently biodegradable: well suited for applications where inadvertent environmental contamination might occur due to leakage (1) per ISO 6743/3 and ISO 12922:1999/Corrigendum 1:2001(E), these are classified as synthetic fluids free of water, but of other composition than HFDR (Phosphate Ester)}.

Additional Information

Anvol SWX FM does not use polymeric materials. Polymeric material can shear in service, leading to a loss of the claimed spray test performance and a reduction in viscosity.

A risk assessment should always be carried out whenever there is a need to select any type of fire resistant hydraulic fluid, based on factors such as the potential sources of ignition, fire prevention measures in place and potential consequences of a fire.
