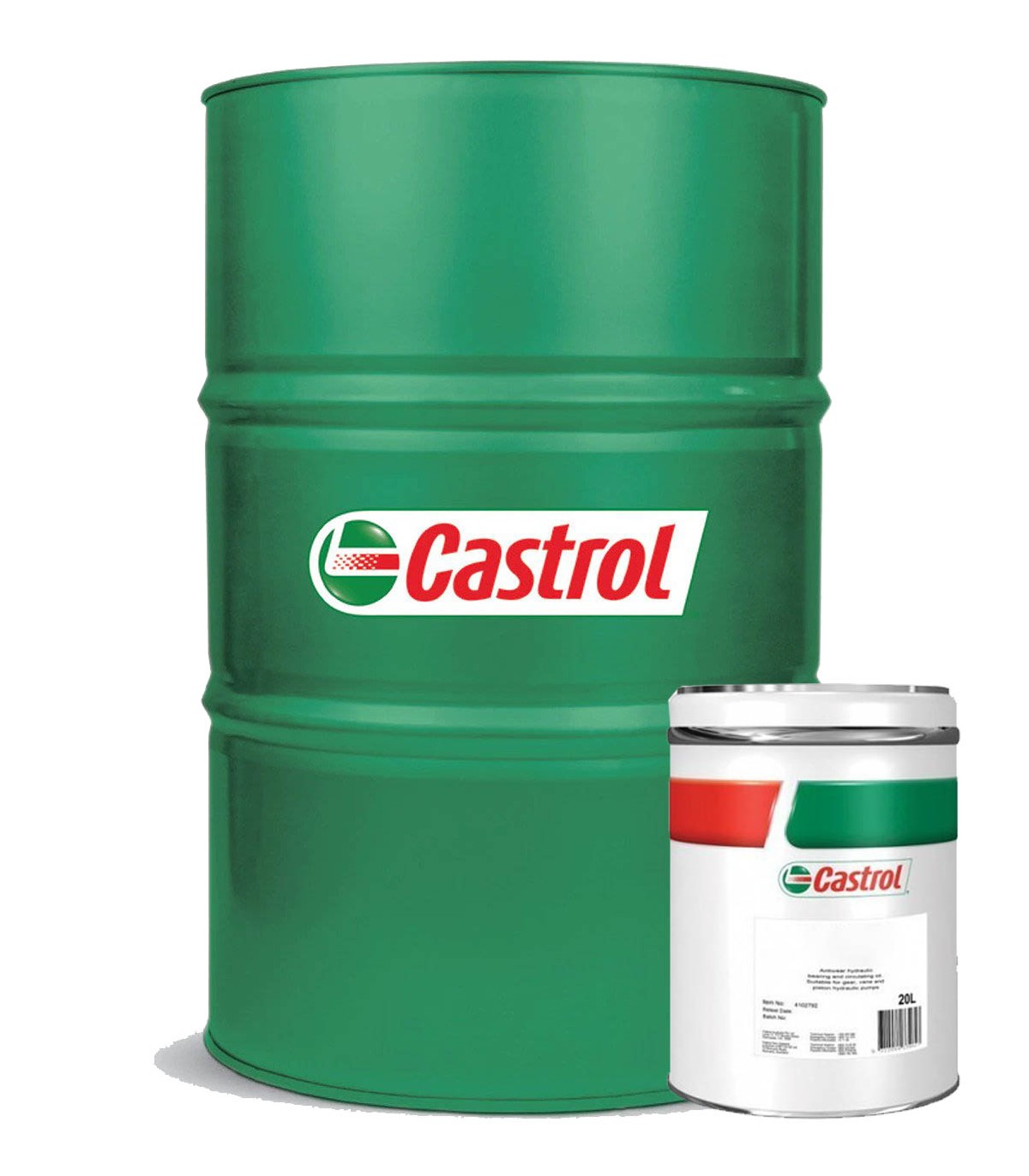

CASTROL HITAC ROCK DRILL 100

Description

Castrol hitac rock drill oil is designed for extreme loads in rock drill applications and formulated with fatty acids that increase the lubricity during contact under extreme pressures. Additionally, Castrol hitac rock drill is formulated with extreme pressure, rust, and corrosion protection additives while providing tackiness for adherence to drill surfaces.

Castrol Hitac Rock Drill Oil meets the performance requirements of many rock drill manufacturers such as Ingersoll-Rand, Gardner Denver, and Sullivan. Rock drill splines are subject to sliding action under intense pressure. To prevent metalto-metal contact, Castrol Hitac Rock Drill provides outstanding extreme pressure characteristics in highly loaded pressures.

Advantages

Castrol Hitac Rock Drill delivers:

Increased lubricity for extreme loads

Advanced extreme pressure additives to prevent metal to metal contact

Excellent rust and corrosion protection. Protects drills during extended idle periods and the presence of heavily moisture-laden compressed air.

Contains a tackiness agent that will provide excellent adhesive characteristics to drill surfaces.

Good oxidation and nitration stability to prevent gumming of any parts exposed to high temperatures.

Castrol Hitac Rock Drill is recommended for use in heavy-duty pneumatic rock drill applications such as Gardner-Denver, Chicago Pneumatic Worthington, Ingersoll-Rand, Joy, etc. Other air operated tools that require extreme pressure lubricant such as jackhammers, pavement breakers, smaller in plant pneumatic tools, drills, wrenches, etc.

Industry Specifications and OEM Approvals

Meets the performance requirements of many rock drill manufacturers such as Ingersoll-Rand, Gardner- Denver, and

Sullivan.

Typical Properties

Test Method Typical Results

ISO Grade 100 150 220

Viscosity at 40° C, cSt ASTM D-445 106 162 224

Viscosity at 100° C, cSt ASTM D-445 13.4 18.1 22.4

Viscosity at 100F, SUS ASTM D-2161 545 795 1120

Viscosity at 210F, SUS ASTM D-2161 75 93 114

Viscosity Index ASTM D-2270 124 124 121

Flash Point, °C (°F) ASTM D-92 237 (460) 236 (457) 236 (457)

Pour Point, °C (°F) ASTM D-97 -26 (-16) -25 (-14) -17 (0)

Gravity, API ASTM D-287 28.7 26.7 25

Specific Gravity @60F, g/ml ASTM D-1298 0.8833 0.8944 0.903

Pounds per Gallon ASTM D-287 7.35 7.44 7.51

* Due to continual product research and development, the information contained herein is based on products purchased in the U.S. and subject to change without notification. Typical properties may vary slightly.
