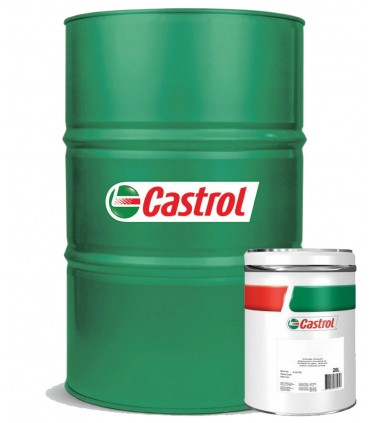

CASTROL Rustilo DW 170 X

Description

Castrol Rustilo™ DW 170 X (previously called SafeCoat™ DW 17 X) is a premium quality solvent deposited corrosion preventive with excellent dewatering properties.

The solvent, after evaporation, leaves a ultra thin oily to greasy protective film.

Application

Rustilo DW 170 X rapidly removes water from components subsequent to electroplating processes, after machining using soluble cutting fluids nd or parts that have been washed or mass vibratory finished.

The very thin residual film provides effective short- to medium-term protection against corrosion during intermediate storage or transportation.

Although Rustilo DW 170 X can be applied by brushing or spraying, its dewatering action is most effective if the articles to be protected can be immersed in a dip tank.

Advantages

Good operator acceptance as based on a mild odour isoparaffin solvent.

Heavy metals free, (example Barium) which may help you to fulfil aspects of legislative requirements and waste treatment requirements that specify that these chemicals are excluded.

Contains a corrosion inhibitor package suitable for short to moderate conditions which provides reliable protection of components.

Excellent water displacing and penetrating properties.

Good stability against acidic and alkaline contaminations which enables a long bath-lifetime to help reducing operational cost.

If required protective films of Rustilo DW 170 X can easily be removed by using a petroleum solvent or alkaline process cleaner, all available from Castrol.

Additional Information

The claims on film thickness and consumption are average values. These are valid for smooth surfaces with good drain-off characteristics and simple geometries without holes or recesses.

Average drying time is the time until the majority of the solvent is evaporated at ambient temperature and a relative humidity of 60 – 70%. The full corrosion protection will be provided when the solvent is completely evaporated.

(*) "Indoor storage” describes the storage of ferrous components in closed store-rooms having a relative humidity of 60%. Increased protection times could be achieved by treating finished surfaces or storing the parts in a sealed pack.

(**) "Outdoor storage” describes open storage, which assumes primary protection from the elements by tarpaulin or other form of cover.

Storage

To avoid product deterioration always keep the container/drum tightly sealed. Store the product in a cool, dry place away from direct sunlight. Prevent exposure to frost and avoid water ingress. For optimum product stability, it is preferable to store the product indoors between 5°C and 45 °C / 41°F and 113°F.

Product must be used in a liquid form. Influence of temperature may cause some cloudiness, which is reversible and does not have an impact on product quality or corrosion protection performance.

For more details, please refer the product safety data sheet.

This product was previously called SafeCoat DW 17 X The name was changed in 2015.
