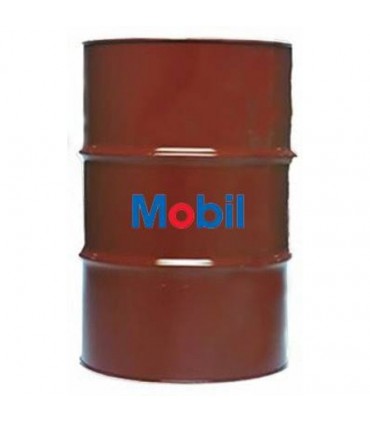

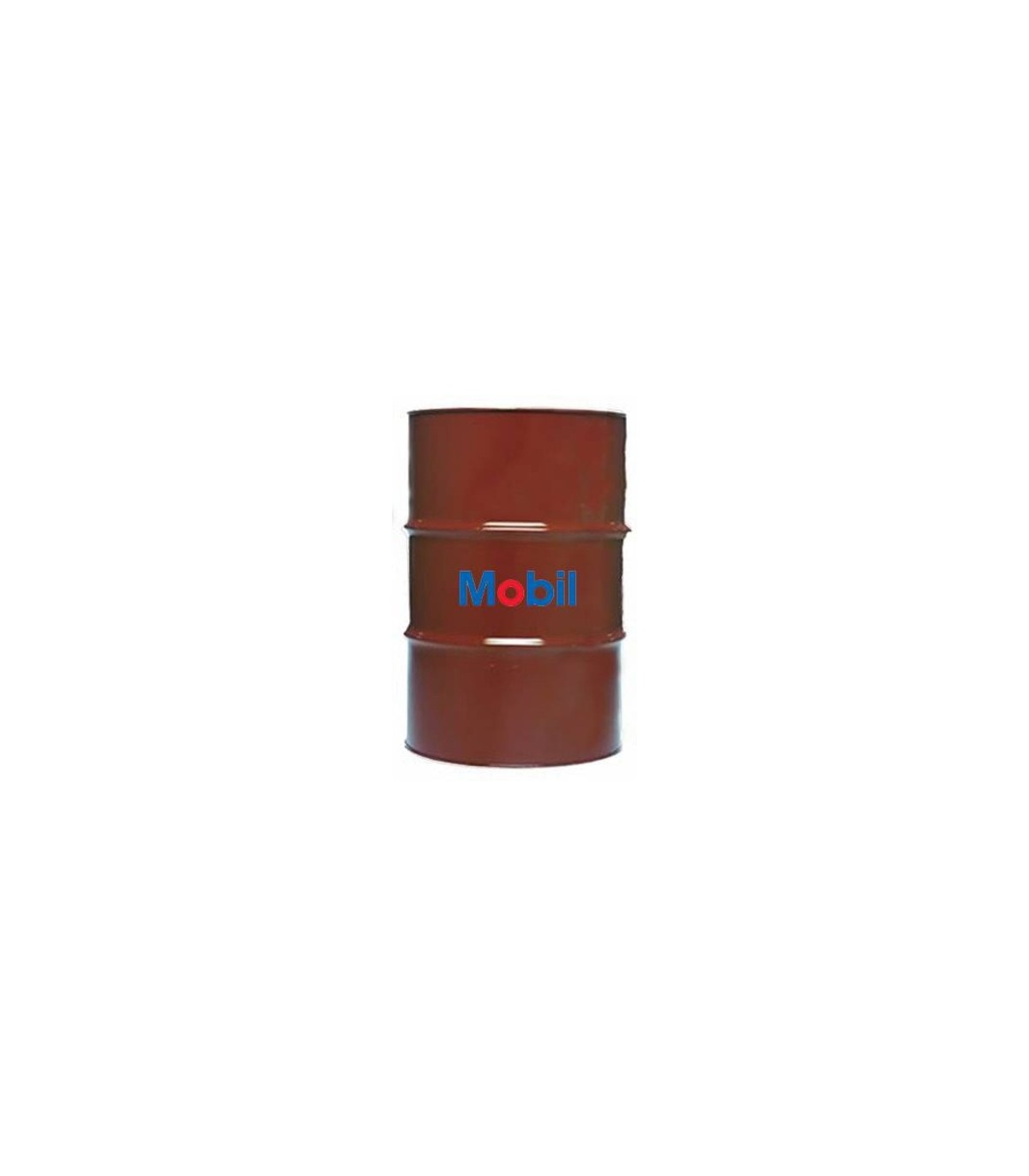

Mobiltrans HD 50
Mobiltrans HD 50; They are superior performance oils for heavy duty transmissions and powertrains, formulated to meet the harsh conditions required by Caterpillar TO-4. This product line has been specifically designed to optimize the performance of powershift (automatic-manual) transmissions, gearboxes and final drives. In hydraulic applications, these oils provide maximum protection even in high pressure systems.
Oils incorporating this technology combine specially selected base oils and a high-tech additive system to provide the precise performance parameters required to maximize the productivity of construction, quarrying and mining equipment operating under harsh conditions. These products offer a clear performance advantage over mixed fleet engine oils and oils previously used to meet Caterpillar TO-2.
Features and Benefits
Today's technology has significantly improved the performance capabilities of heavy-duty equipment operating in field conditions in terms of load, torque, speed, control and reliability, thanks to innovative designs in the powertrain. These designs require that the oils used in the powertrain provide higher levels of performance, productivity and efficiency. Features such as friction control, wear protection, thermal stability, shear stability, rust and corrosion protection, and pumpability are at the optimum level to ensure long clutch life, slip control, maximum drawbar loading and ability to operate under heavy loads, even on slopes and extreme temperatures Mobiltrans HD 50 shows exceptional performance in today's gearboxes, powertrains and hydraulic systems. Its main benefits are as follows:
Features Advantages and Potential Benefits
Balanced static and dynamic friction coefficients Optimized clutch friction and slide control
Significantly extends clutch life compared to the best API CD / TO-2 engine oils
Compatibility with today's modern clutch materials and elastomers Longer clutch life and higher performance
Higher load-carrying and anti-wear capacity Longer transmission, gearbox and final drive unit life with less gear wear
Higher productivity with shorter downtimes
Excellent antifoam property Highest performance in wet brakes; control of brake chatter
Excellent thermal and oxidation stability Superior hydraulic oil stability and protection against high pressure pump wear
Very good pumpability at low temperatures due to low viscosity Reduction in time from first start to production
Usage places
* Heavy-duty gearboxes, gearboxes, final drives and hydraulic systems used in field applications
* Industries such as mining, construction, quarrying and agriculture working in land conditions
* Manual, powershift and automatic transmissions where Allison C-4 oils are required (SAE 10W and 30 classes), including those with Double Disc, as well as transmissions requiring Type F oils
* Suitable for most hydraulic applications involving moving equipment
Specifications and Approvals
Mobiltrans HD meets or exceeds the following industry and manufacturer specifications: 10W 30 50 60
Caterpillar TO-4 X X X X
Mobiltrans HD is recommended for applications requiring the following conditions: 10W 30 50 60
Allison C-4 X X
ZF-TE-ML 03C X X
Typical Properties
Mobiltrans HD
SAE Class 10W 30 50 60
Viscosity, ASTM D 445
cSt @ 40 ° C 42 100 195 340
cSt @ 100 ° C 6.3 11.2 18.0 25.2
Viscosity Index, ASTM D 2270 96 97 100 96
Pour Point, ° C, ASTM D 97 -33 -18 -15 -12
Flash Point, ° C, ASTM D 92 202 224 240 244
Density @ 15 ° C kg / l, ASTM D 4052 0.89 0.89 0.91 0.91
Health and Safety
In the light of available information; This product is not expected to cause adverse effects on human health when used in places intended and when the advice provided in the MSDS is followed. MSDSs can be provided on request from the main distributor or via the Internet. This product should not be used out of its purpose. Be careful about protecting the environment while disposing of used products.
