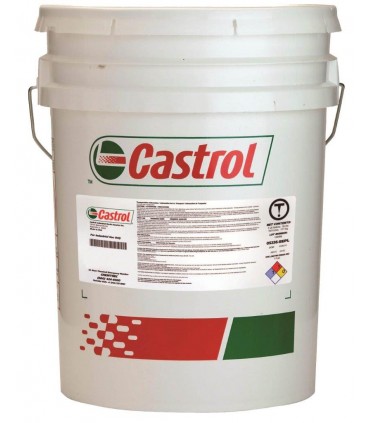

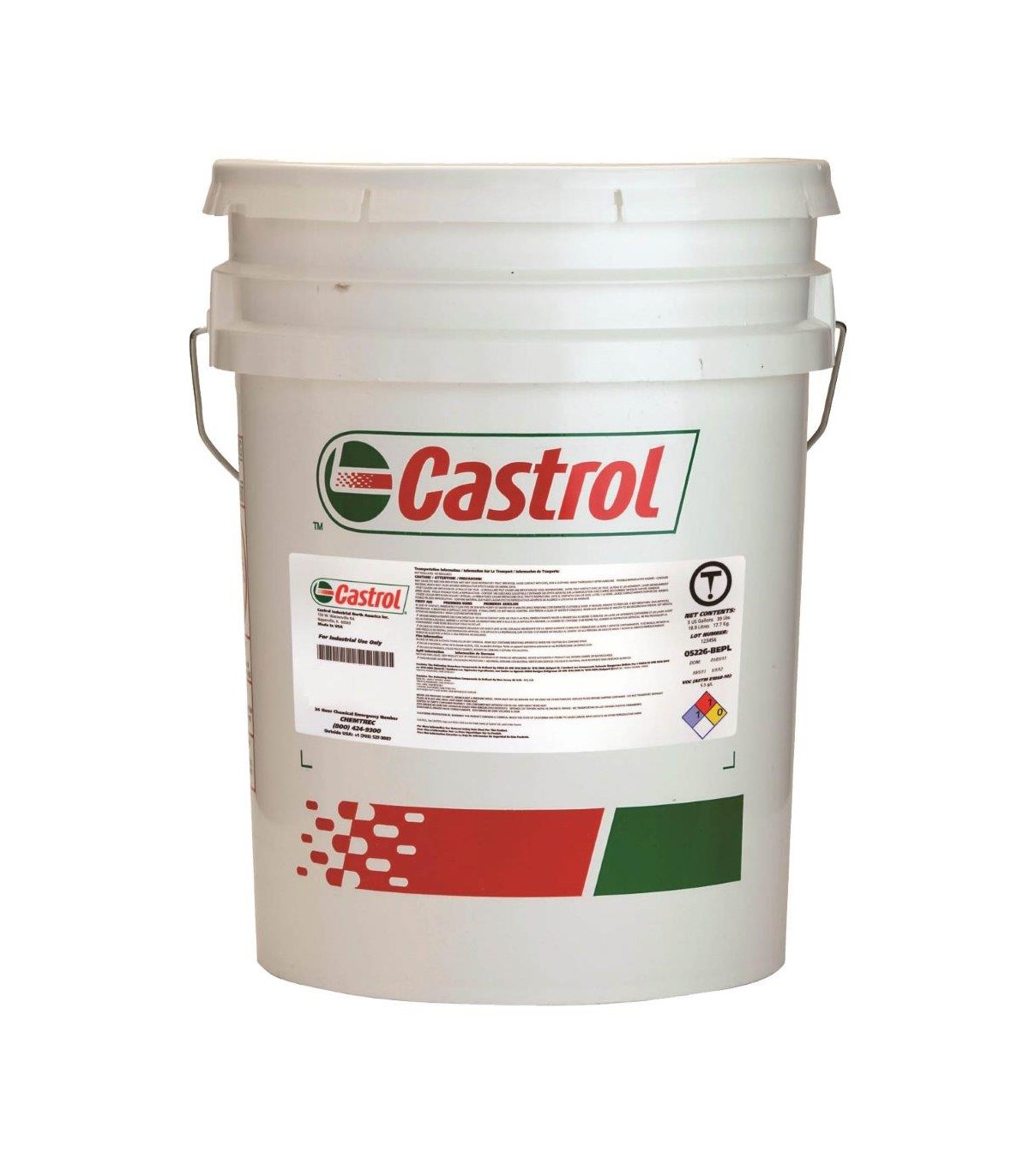

CASTROL Braycote Micronic 601 EF

Explanation

Castrol Braycote ™ Micronic 601 EF is a smooth, buttery, translucent, Off-White, NLGI # 2 lubricant. Base oil (Castrol

Brayco ® 815Z) is a perfluorinated polyether with exceptional chemical resistance, extremely low volatility and a large area.

temperature service range. The oil is non-toxic, non-flammable and does not use any chlorofluorocarbon (CFCs) ) )

during product production. This product has an extraordinarily high bearing capacity as measured by the FourBall EP test and includes a rust and corrosion inhibitor for additional component protection. Castrol Fluoroclean ™ X100 or

Castrol Fluoroclean ™ can be used to remove this lubricant. See their data sheets for more information about them

products.

Application

The Braycote Micronic 601 EF is designed to operate in the presence of rocket fuels, oxidizers and high vacuum. He

it is often used in space applications, including Space Shuttle and satellites. It should also be considered in all cases

application in which a hostile chemical or extreme environmental conditions will prevent the use of an ordinary grease.

Typical applications include Ball and roller bearings, gears and O-rings, and a mounting lubricant for elastomers.

Perfluorinated greases such as this product exhibit excellent shelf life due to their intrinsic inertness.

Temperature range: - 80ºC to 204ºC (- 112ºF to 400ºF)

Terms Of Use

Limitations:

Braycote Micronic 601 EF is compatible with the most commonly used materials, plastics and elastomers. This may be

it is negatively affected by Lewis acid catalysts such as aluminum chloride at high temperatures. New exposure

the friction surfaces of aluminum, magnesium and titanium alloys can react with this product under certain conditions.

Such systems should be thoroughly evaluated. Surfaces must be well cleaned from organic rust inhibitors before lubrication

application to ensure proper lubrication. This product is not recommended for use in applications under high vacuum

with loads exceeding 100,000 psi for a long time.

Packaging

Braycote Micronic 601 EF is available in 2 oz and 4 oz (AVDP) disposable polypropylene syringes and 1-pound jars.
