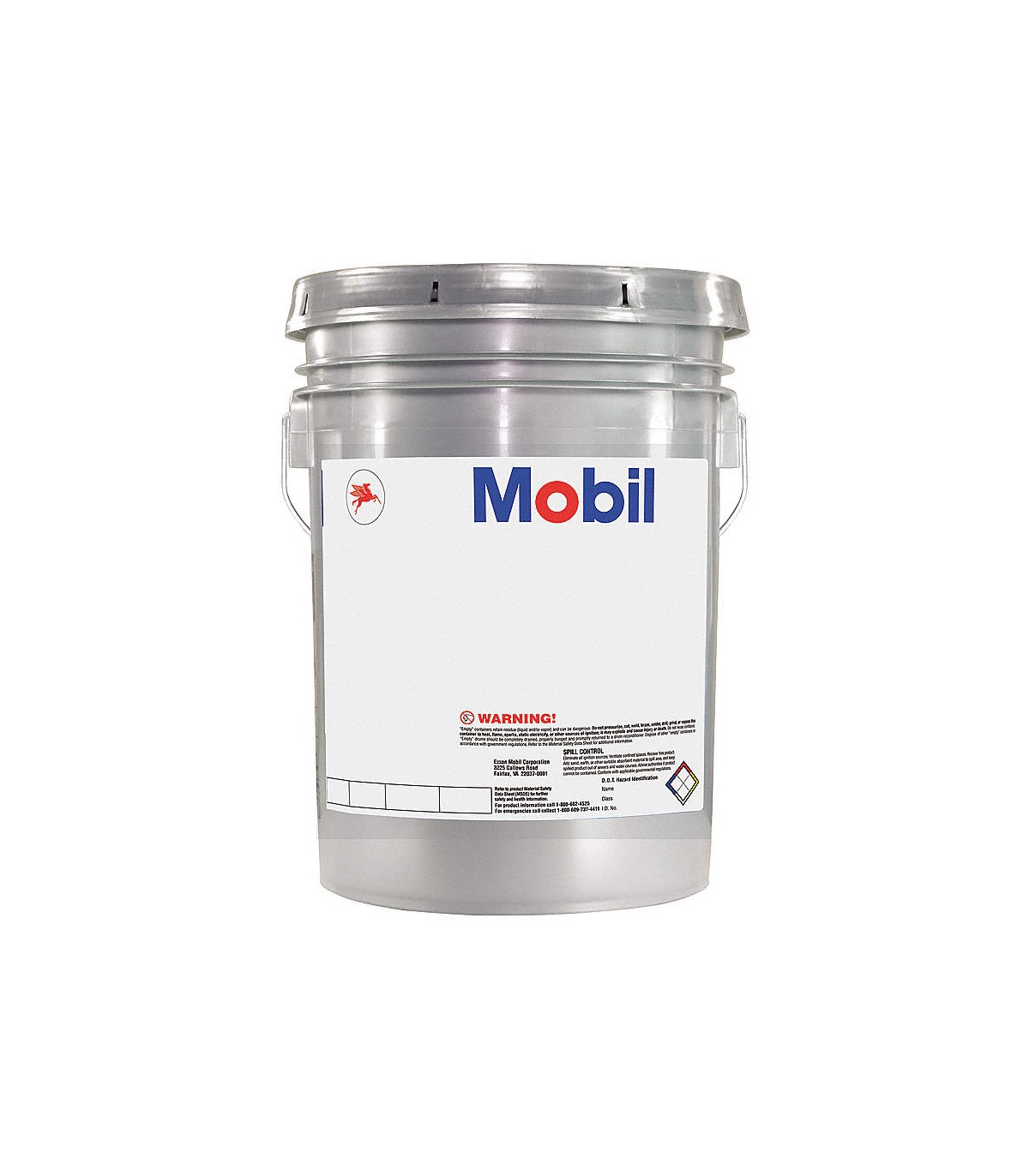

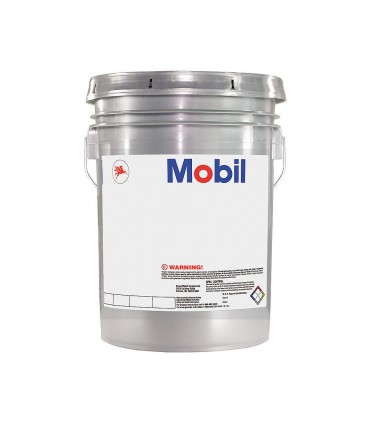

Mobil Vacuoline 533 - 20 Litr

₺0.00 (tax incl.)
Reference:
Brand:
Description

Mobile Vacuoline 533

Circulating Oils

Product description

Product Old Name: Mobil DTE Oil BB - VG220

Movil Vacuoline 500 Series products provide versatile lubrication for a wide range of industrial equipment. Mobil Vacuoline 500 Series lubricants are heavy duty circulating oils designed for the needs of No-Twist Rod mills, but their performance makes them an excellent option for lubricating gears and bearings with a circulating system. Mobil Vacuoline 500 Series is designed to meet the critical demands of Morgan Construction Company's high-speed No-Twist Rod Rolls as well as the circulating oil requirements of Danielli rod rollers.

The oil is formulated with high quality base oils and a special additive system for its excellent spreading on metal surfaces, outstanding adhesion and providing thin film protection against rust and corrosion. Mobil Vacuoline 500 has excellent oxidation and thermal degradation resistance and provides a high level of wear protection. It has superior water separation feature that allows water and other dirt to be separated from the oil immediately in the system reservoir. Mobil Vacuoline 500 Series is available in six viscosity grades.



Features and Benefits

The products of the Mobil Vacuoline 500 Series are recognized and accepted worldwide thanks to their outstanding performance and the Research and Development expertise and global technical support behind the brand. Thanks to the versatile performance of Mobil Vacuoline 500 Series oils, many users worldwide have chosen them for years.

Mobil Vacuoline 500 series, No-Twist Rod Rolls, are designed for lubrication of circulation systems of gearboxes, hydraulic systems and a wide range of auxiliary equipment in industrial and marine applications.



Features Advantages and Benefits

Good protection against rust and corrosion thanks to its balanced and high performance oil formulation Provides less unscheduled downtime and low maintenance costs

Unique anti-wear performance Protects sensitive bearings and gears perfectly

Excellent water separation properties. It leaves the water quickly to provide smooth and effective operation, reduces downtime and provides continuous protection against wear.

High oxidation and thermal degradation resistance allows the oil change time to be extended and to avoid the cost of unexpected production interruptions

Formulation using high quality compounds worldwide shows reliable performance worldwide





Usage places

These oils are primarily intended for lubrication of plain bearings, roller bearings, parallel shafts and bevel gears. They are suitable as multi-purpose lubricants in systems that are not exposed to impact load and do not require extreme pressure performance. Mobil Vacuoline 500 series has a good water separation feature that continues in severe water contamination situations. Mobil Vacuoline 500 series is used in applications using splash, bath and ring lubrication systems and all other application methods including pumps, valves and auxiliary equipment. It is recommended to be used in hydraulic systems where high viscosity oils are required. They are particularly resistant to the effects of prolonged exposure to high temperatures and perform well in circulating systems with short oil rest times.

Typical applications:

No -Twist Rod Rolls

Straight, bevel, helical and sergeant gear sets working in medium load

Circulation systems

Mobil Vacuoline 525, 528, 533 can also be used in hydraulic systems using gear, vane, radial and axial piston pumps where high viscosity anti-wear hydraulic oils are required.

It can be used in some compressors and vacuum pumps working with air and inert gases, provided that the outlet temperatures do not exceed 150oC; Not suitable for compressors that fill air cylinders used for breathing.



Specifications and Approvals



Mobil Vacuoline 500 Series meets or exceeds the following approvals and specifications: 525 528 533 537 546 548

Meets or exceeds Morgan Construction Company's No-Twist® Rod Rolling Oil specifications X

Danieli Type 21-0.002117.R BGV No Twist Stand Block-TMB / TFS Rev 14 X





Typical Properties



Mobil Vacuoline 500 Series 525 528 533 537 546 548

ISO Viscosity Class - 150 220 320 460 680

Viscosity, ASTM D 445

mm2 / second @ 40ºC 89 146 215 309 453 677

mm2 / second @ 100ºC 10.7 14.4 18.8 24.4 29.4 36.9

Viscosity Index, ASTM D 2270 99 96 96 96 95 89

Pour Point, ºC, ASTM D 97 -24 -21 -15 -12 -12 -9

Flash Point, ºC, ASTM D 92 264 272 284 288 286 286

Specific Weight @ 15.6 ºC kg / l, ASTM D 1298 0.88 0.89 0.89 0.89 0.90 0.92

Water separation at 54ºC, ASTM D1401 37ml water, 15 minutes

Water separation at 82ºC, ASTM D1401 3ml, minutes 10 15 20 25 5

Water separation for non-EP oils, ASTM D2711, ml water 39 38 36 39 3
