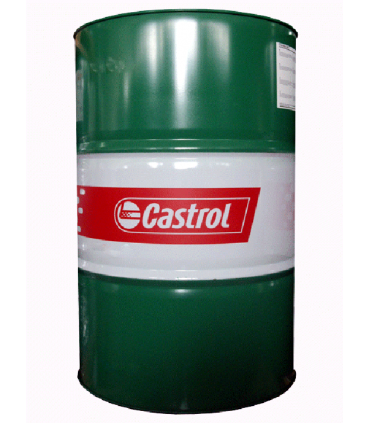

Castrol Alphasyn EP 220
Synthetic gear oils
High quality synthetic oil Castrol AlphasynTM EP gear oil range based on Polyalphaolefin
(PAO) fluids and sulfur / phosphorus Extreme pressure (EP) additive technology
good thermal stability and high load carrying capacity.
Alphasyn EP is formulated for all types of use with closed gear such as range heavy
and shock loaded gears and bearings require EP specifications.
They are suitable for use in gearboxes where micro-pit resistance is required and for a wide range of
in extreme environments, e.g. mining and quarrying, marine applications and applications
Using a PAO base stock naturally provides a high Viscosity Index (VI) and low pour points
making these products suitable for use in a wide temperature range.
Alphasyn EP series is compatible with nitrile, silicone and fluropolymer sealing materials.
Alphasyn EP is classified as follows:
DIN Classification CLP
Alphasyn EP series meets the requirements:
• DIN 51517 Part 3
AGMA 9005 - D94
US Steel 224
• David Brown Type E
• Hansen Transmissions
Lohmann & Stofferfoht
Full EP performance * provides maximum protection of the gear against abrasion and shock loads
including protection against micro-tingling.
Good thermal and oxidation stability ensures reliable operation and longer service life
compared to mineral oil-based products.
Gears • High corrosion protection.
• Inherently high Viscosity Index (VI) makes the product suitable for a very wide range of operations.
Fast air release and Flender Foam Test good performance foam and barriers
damage to bearings.
With good water separation and demulsification properties means time is reduced down
extended oil life and increased equipment reliability.
• A PAO-based lubricant provides good compatibility with seals, paint and mineral-based oil
Under A16.6./90 achieved FZG rating of> 14 * ISO 320 degrees (double speed) test conditions
Castrol Alphasyn EP
16.10.2005, Global Version Issue 1
Castrol, Alphasyn, and the Castrol logo are trademarks of Castrol Limited, used under license.
All reasonable care has been taken to ensure that the information in this publication is accurate as of the date.
printing. However, such information may still be affected by the change in the formulation of the resulting mixture.
after the print date. Material Safety Data Sheets are available for all Castrol Ltd products. MSDS
Appropriate information on the storage, safe use and disposal of a product should be consulted.
Castrol Industrial North America Inc 150 West Warrenville Road, 605 3E Naperville, IL 60563
Tel: (877) 641 1600 Fax: (877) 648 9801
www.castrol.com / industry
Test Method Number 150 220 320 460
Density @ 15 ° C ISO 12185 /
g / ml 0.86 0.86 0.86 0.87
K.V. @ 40 ° C ISO 3104 / ASTM
mm2 / s 150 220 320 460
K.V. @ 100 ° C ISO 3104 / ASTM
mm2 / s 18 25 33 45
Viscosity Index ISO 2909 / ASTM
- 140 140 140 140
Pour spot ISO 3016 / ASTM
-48 ° C -42 -36 -36
Flash Point, PMC ISO 2719 / ASTM
° C 220 220 230 230
Foam Seq I ISO 6247 / ASTM
mls 0/0 0/0 0/0 0/0
Rust Test (24 hours
synthetic sea water)
ISO / 7210 /
- Passed Pass
Timken OK Load ASTM D2782 /
Kg / lbs 39/85 41/90 41/90> 41/90
Fail scene FZG
(A8.3 / 90)
ISO 14635-1 /
-> 14> 14
Fail scene FZG
(A16.6 / 90) *
ISO 14635-1 /
-> 12> 12> 12> 12
