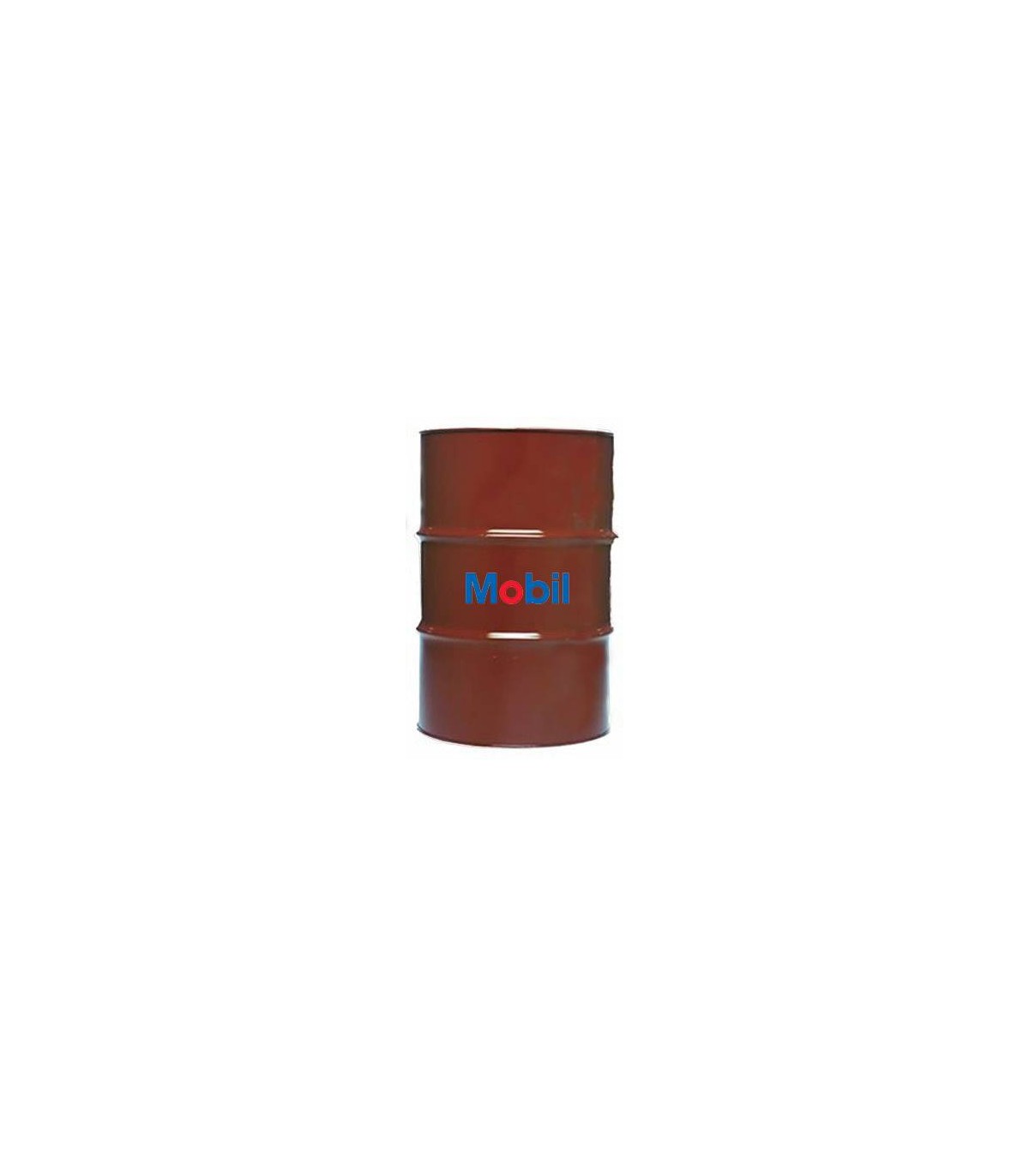

Mobil Vacuoline 525 - 208 Litre

Mobil Vacuoline 525

Circulating Oils

Product description

The products of the Movil Vacuoline 500 Series provide versatile lubrication for a wide variety of industrial equipment. Mobil Vacuoline 500 Series lubricants are heavy-duty circulating oils designed for the needs of No-Twist Rod mills, but their performance makes them an excellent option for recirculating gears and bearings. Mobil Vacuoline 500 Series is designed to meet the critical demands of Morgan Construction Company's high-speed No-Twist Rod Mills, as well as the circulation oil requirements of Danielli rod mills.

The oil is formulated with high quality base oils and a special additive system to provide excellent spreading on metal surfaces, outstanding adhesion and thin film protection against rust and corrosion. Mobil Vacuoline 500 has excellent oxidation and thermal degradation resistance and provides a high level of protection against wear. It has superior water separation feature that allows water and other dirt to be separated from oil in the system reservoir immediately. Mobil Vacuoline 500 Series is available in six different viscosity grades.

Features and Benefits

The products of the Mobil Vacuoline 500 Series are recognized and accepted around the world thanks to their outstanding performance and the Research and Development expertise and global technical support behind the brand. Many users around the world have chosen these oils for years, thanks to the versatile performance of Mobil Vacuoline 500 Series oils.

Mobil Vacuoline 500 series are designed for lubrication of circulation systems of No-Twist Rod Mills, gearboxes, hydraulic systems and a wide range of auxiliary equipment in industrial and marine applications.

Features Advantages and Potential Benefits

Good protection against rust and corrosion thanks to the balanced and high performance oil formulation Provides less unscheduled downtime and low maintenance costs

Unique anti-wear performance Protects precision bearings and gears perfectly

Excellent demulsibility properties Quickly separates from water for smooth and efficient operation, reduces downtime and provides continuous protection against wear

High oxidation and thermal degradation resistance Allows extended oil change period and avoiding the cost of unexpected production interruptions

Formulation using world-class high-quality compounds shows reliable performance worldwide

Usage places

These oils are primarily intended for the lubrication of plain bearings, roller bearings, parallel shaft and bevel gears. They are suitable for use as multi-purpose lubricants in systems that are not exposed to impact loads and do not require extreme pressure performance. Mobil Vacuoline 500 series has good water separation properties that persist even in cases of severe water contamination. Mobil Vacuoline 500 series are used in applications using splash, bath and ring lubricated systems and all other application methods including pumps, valves and auxiliary equipment. They are recommended for use in hydraulic systems where high viscosity oils are required. They are particularly resistant to the effects of prolonged exposure to high temperature and perform well in circulating systems with short oil rest periods.

Typical applications:

No-Twist Rod Rolls

Straight, conical, helical and sergeant gear sets operating at medium load

Circulation systems

Mobil Vacuoline 525, 528, 533 can also be used in hydraulic systems using gear, vane, radial and axial piston pumps where high viscosity anti-wear hydraulic oils are required.

It can be used in some compressors and vacuum pumps operating with air and inert gases provided that the outlet temperatures do not exceed 150oC; It is not suitable for compressors that fill air tubes used for breathing.

Specifications and Approvals

Mobil Vacuoline 500 Series meets or exceeds the following approvals and specifications: 525 528 533 537 546 548

Meets or exceeds Morgan Construction Company's No-Twist® Bar Mill Oil specifications X

Danieli Type 21-0.002117.R BGV No Twist Stand Block-TMB / TFS Rev 14 X

Typical Properties

Mobil Vacuoline 500 Series 525 528 533 537 546 548

ISO Viscosity Grade - 150 220 320 460 680

Viscosity, ASTM D 445

mm2 / second @ 40 C 89 146 215 309 453 677

mm2 / second @ 100ºC 10.7 14.4 18.8 24.4 29.4 36.9

Viscosity Index, ASTM D 2270 99 96 96 96 95 89

Pour Point, ºC, ASTM D 97 -24 -21 -15 -12 -12 -9

Flash Point, ºC, ASTM D 92 264 272 284 288 286 286

Specific Gravity @ 15.6 ºC kg / l, ASTM D 1298 0.88 0.89 0.89 0.89 0.90 0.92

Separation from water at 54 C, ASTM D1401 37ml water, minute 15

Separation from water at 82ºC, ASTM D1401 3ml, minute 10 15 20 25 5

Water separation for non-EP oils, ASTM D2711, ml water 39 38 36 39 35 36

Rust Protection, ASTM D665
